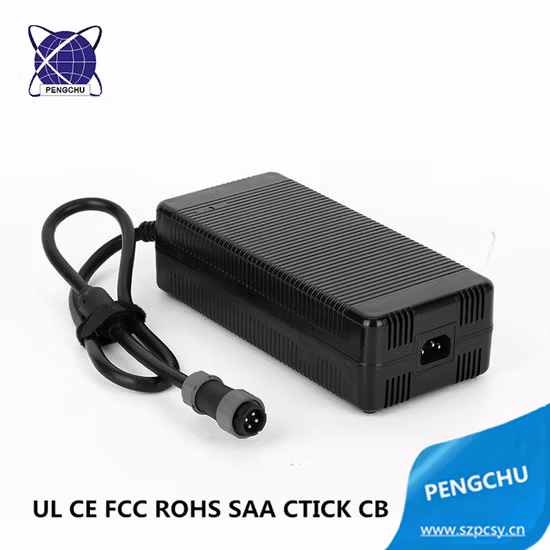

AC DC 12V 38A Switching Power Adapter Desktop 456W Power Supply for Bitcoin Miner
Basic Info.
| Model NO. | PC-120380 |
| Power Source | Half-Bridge Type |
| Connection | Desktop |
| Material | 100% PC |
| Pfc | >0.99 |
| AC Plug | EU,US,UK,AU Plug or Your Demand |
| DC Power Cord | 0.9m,1.2m,1.5m or Your Demand |
| Aging Test | 100% Full Load Test |
| Output Voltage | 12V |
| Efficiency | 88% Min |
| Output Current | 38A |
| Input Voltage | 100-240V |
| Output Power | 456W |
| HS Code | 8504401400 |
| Production Capacity | 150000/Month |
Product Description
AC DC 12V 38A Switching Power Adapter Desktop 456W Power Supply for Bitcoin MinerFeatures:
(1)High efficiency, High reliability, Long life time
(2)Efficiency: 88% min
(3)Approved CE RHoS FCC certification
(4)Warranty: 2 years
(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(6) Real power, high reliablity, long life IEC320-C14, IEC320-C6 AC inlet optional OEM/ODM welcome (special voltage & dc connector & logo & package).
(7)Suit for: LED, LCD, CCTV camera, Motor,etc.
| Part. No. | PC-120380 |
| Product size | 240*110*67 mm |
| AC Input | 100~240V AC 50/60Hz Max:90~264V AC 47/63Hz |
| DC Voltage | 12V |
| Rate Current | 38A |
| Rate Power | 456W |
| Material | 100% PC |
| Certification | Approved CE RoHS FCC CB SAA certification |
| Voltage Tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | >88% |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%~150% |
| Over Voltage Protection | 115%~135% |
| Operating Temperature | -10ºC~50ºC(±10ºC) |
| Relative Humidity | 20%~90% RH |
| Storage Temperature | -40ºC~80ºC(±10ºC) |
| DC Connector | 6 pin or Customized available |
| DC Cable | 0.6m, 0.8m, 1.2M (Customized available) |
| AC Cable | USA/UK/EU/AU/India Plugs(Customized available) |
Product show:
Trade Term:
- Payment term: PayPal, Western Union, T/T,etc
- Leading time:7-9 working days
- Sample: 3-5 working days after payment confirmed
- Freight cost: Customers's shipping agent or our forwarder
FAQ:
Q: How many Voltage you can supply? A: 5V 6V 9V 10V 12V 16V 28V 29V 24V 36V 48V
Q: How many current you can supply? A: 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 10A 15A 20A 30A 40A
Q:Are you manufacturer? A:We are a professional power supply manufacturer with high reputation in this field. Q.Do you have certificates for your products? A:Yes,we have UL,ETL,FCC,RoHS,CE,KC,SAA, PSE,REACH and DOE Level VI Standard Certifications. Q: What is your samples lead time or goods delivery time? A: Samples time about 3 working days,goods time about 12 working days. Q:Can we print our logo? A: We can print your logo on both power adapter and package.
